Description

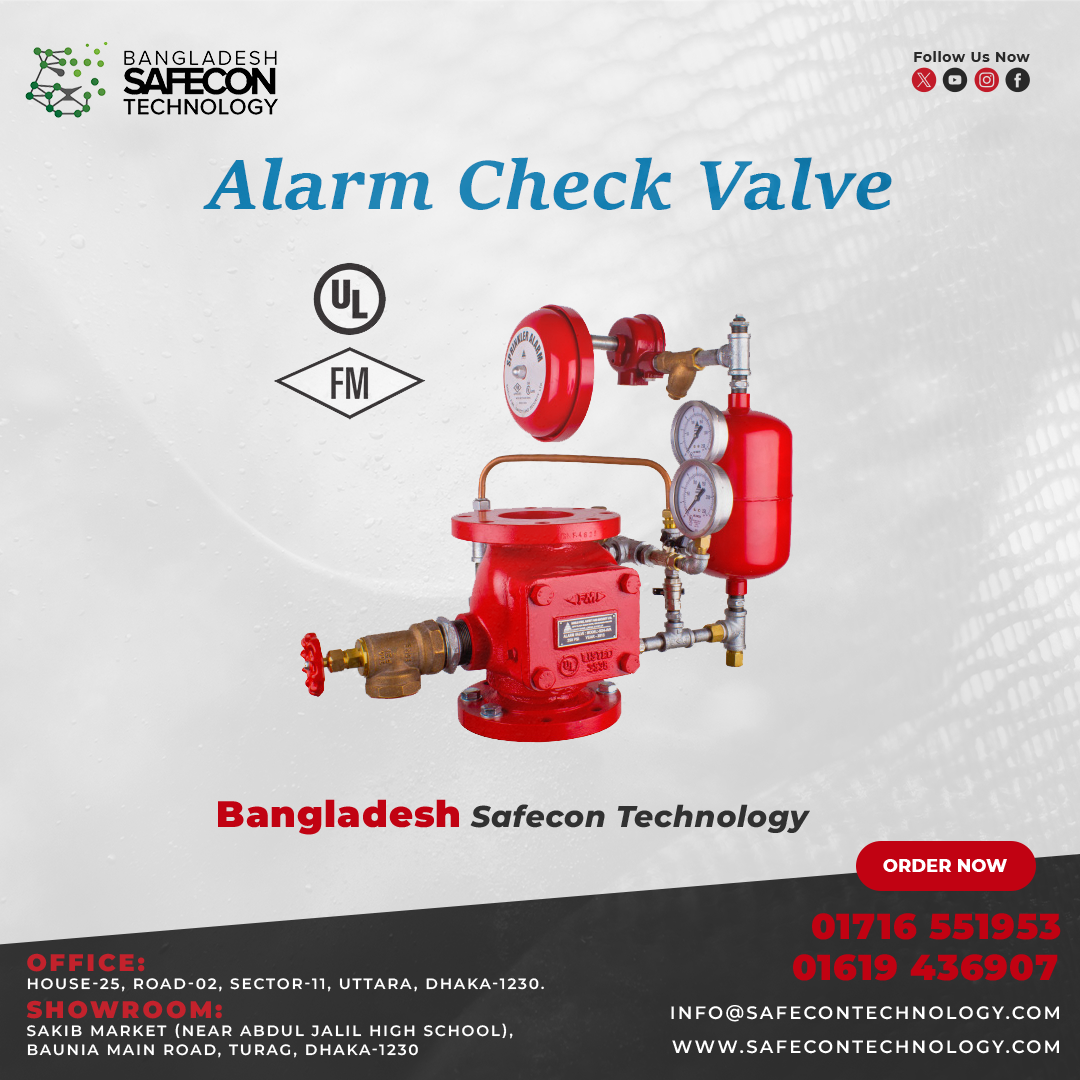

An Alarm Check Valve is a critical component of wet pipe fire sprinkler systems, designed to allow water to flow into the sprinkler system while preventing reverse flow. When a sprinkler head operates due to fire, the movement of water through the valve activates a mechanical or electrical alarm, providing an immediate indication of fire or system operation.
The valve integrates a check valve mechanism with an alarm outlet, ensuring reliable fire detection and system integrity. Alarm Check Valves are manufactured from high-quality Ductile Iron or Cast Iron with corrosion-resistant coatings to ensure long service life and dependable performance. They are widely used in commercial buildings, industrial facilities, warehouses, and fire protection installations in compliance with fire safety standards.
Key Features
- Detects water flow and activates alarm automatically
- Prevents backflow in sprinkler systems
- Reliable and fast response during fire events
- Durable and corrosion-resistant valve body
- Compatible with wet pipe sprinkler systems
- Easy installation and maintenance
- Supports mechanical and electrical alarm devices
Technical Specifications – Alarm Check Valve
| Parameter | Specification |
|---|---|
| Valve Type | Alarm Check Valve |
| System Type | Wet Pipe Sprinkler System |
| Size Range | DN 50 – DN 300 (2″ – 12″) |
| Body Material | Ductile Iron (DI) / Cast Iron (CI) |
| Trim Material | Brass / Stainless Steel |
| End Connection | Flanged (ANSI / DIN / BS Standard) |
| Working Pressure | Up to 16 bar |
| Test Pressure | Up to 24 bar |
| Operating Temperature | 0°C to +80°C |
| Medium | Water / Fire Water |
| Alarm Type | Mechanical Gong / Electrical Switch |
| Installation Position | Vertical |
| Coating | Red Epoxy / Powder Coated |
| Standards | UL / FM / NFPA (model dependent) |
Applications
- Wet pipe fire sprinkler systems
- Commercial and industrial buildings
- Warehouses and storage facilities
- Shopping malls, hospitals, and offices
- Fire protection and alarm monitoring systems
