Description

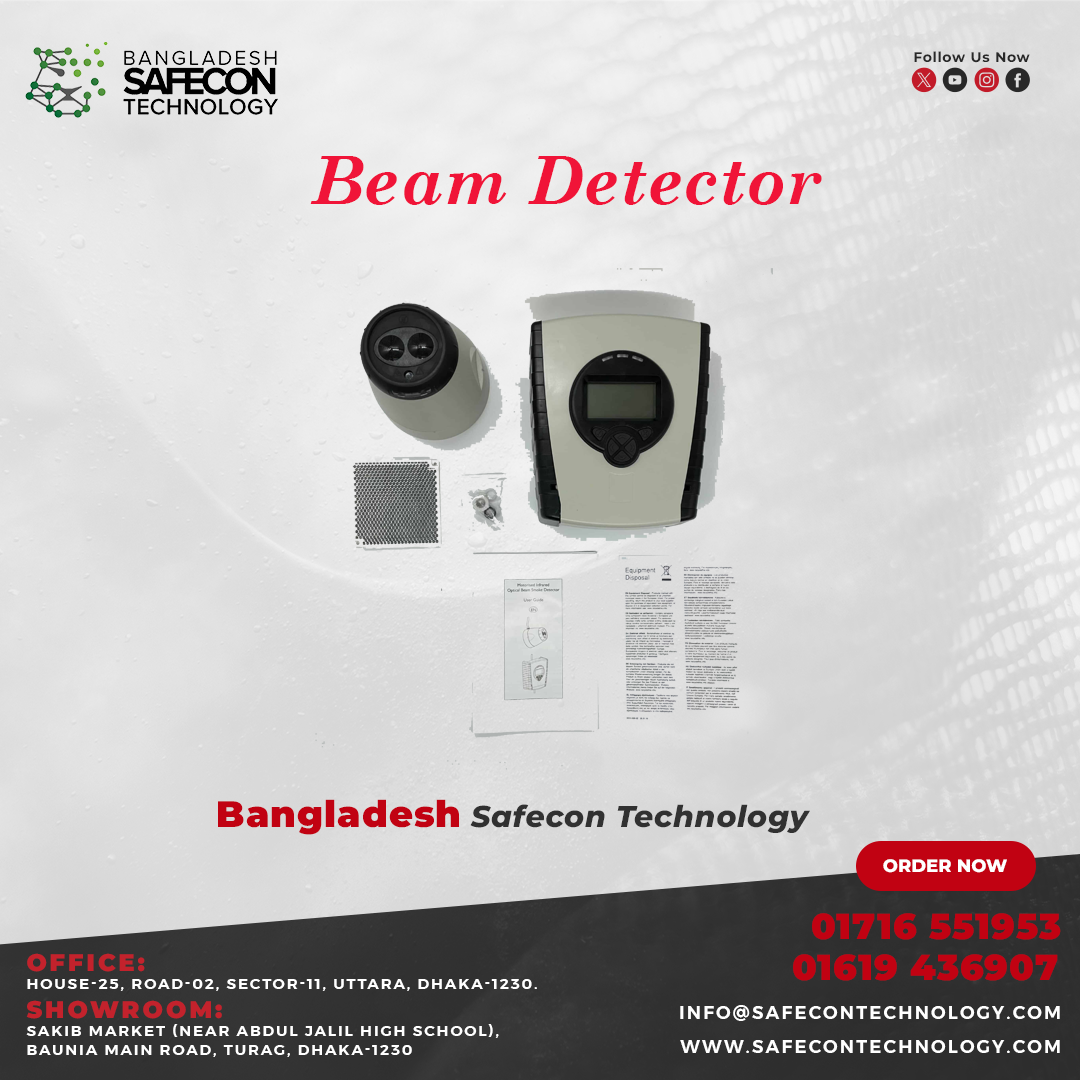

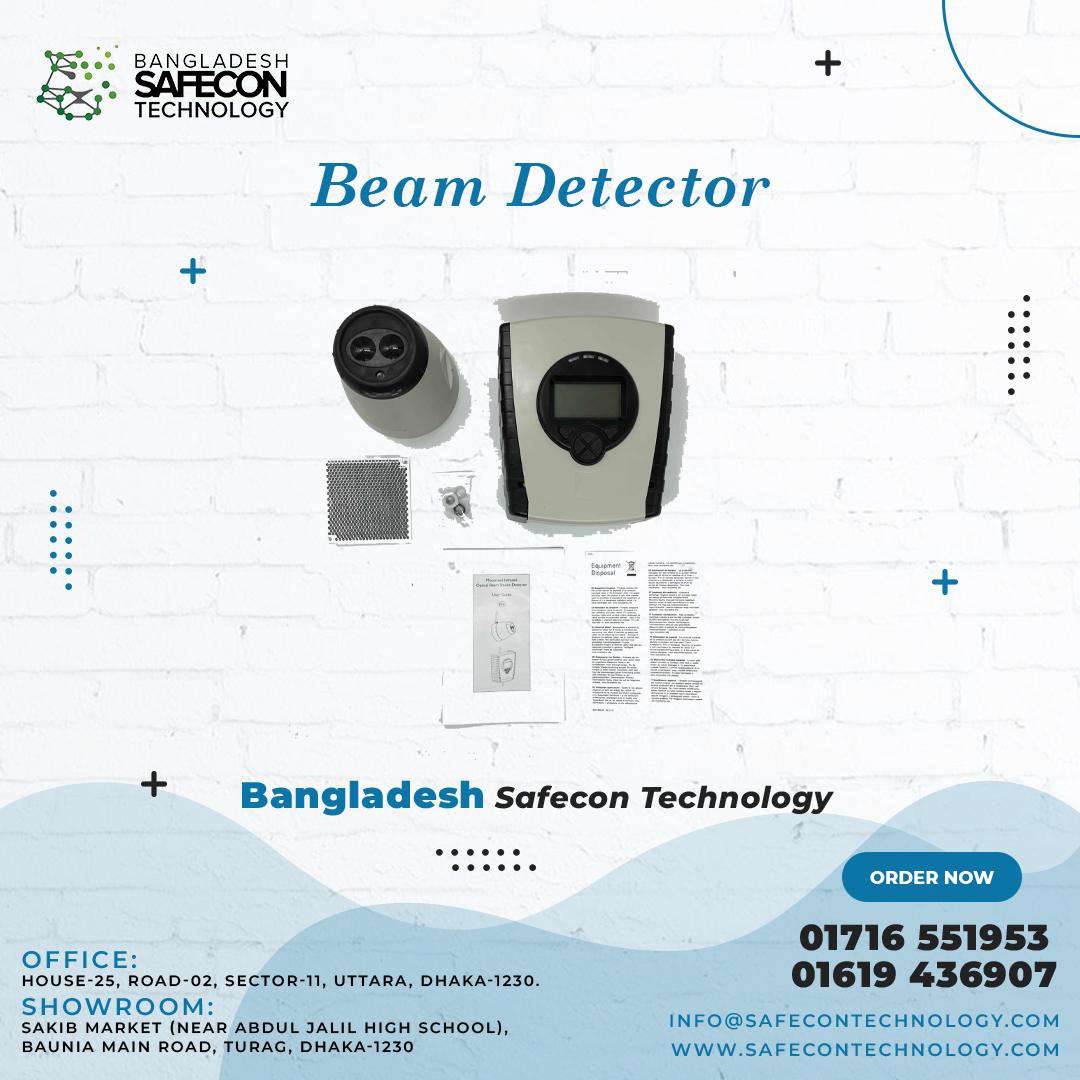

The Beam Detector is an advanced smoke detection device designed to protect large areas by using a projected infrared beam to detect the presence of smoke. It operates by transmitting a beam of light from a transmitter to a receiver, or by reflecting the beam from a reflector. When smoke enters the beam path, it causes a reduction in signal strength, triggering a fire alarm.
This type of detector is especially suitable for environments with high ceilings or wide open spaces where conventional point-type smoke detectors may be impractical or ineffective. The Beam Detector offers long-range coverage, reducing the number of detectors required and simplifying installation in large facilities.
Built with precision optical components and industrial-grade materials, the Beam Detector delivers stable performance, fast response, and high reliability. It is compatible with fire alarm control panels and is designed to meet fire safety standards, making it a dependable solution for early fire detection in challenging environments.
Key Features:
- Long-range smoke detection using infrared beam technology
- Suitable for high ceilings and large open areas
- Fast response to smoke presence
- Reduces the number of detectors required
- Reliable and stable performance
Technical Specifications:
| Specification | Details |
|---|---|
| Device Type | Beam Smoke Detector |
| Detection Method | Infrared Beam |
| Coverage Range | Long Distance (as per model) |
| Operating Voltage | 24V DC |
| Sensitivity | Adjustable |
| Alignment Method | Optical / Laser Assisted |
| Compatibility | Fire Alarm Control Panel |
| Operating Environment | Indoor |
Applications:
- Warehouses and storage facilities
- Shopping malls and exhibition halls
- Airports and railway stations
- Factories and industrial buildings
- High-ceiling commercial structures
